• RX/62N Processor running at 96 MHz
• 32 or 64 Mb of 16-bit SDRAM
• USB-based programming console (FT232R, gRX-compatible) provides mode select, remote reset, and 115,200 baud serial port with hardware flow control.
• Second console (TTY-232R-3.3V compatible)
• Host or device USB
• 10/100 Ethernet
• PS/2 keyboard/mouse connectors
• SPI-based microSD
• 8 LED indicators
• Ambient light sensor
• Ambient temperature sensor
• Consumer IR receiver (i.e. TV remote)
• Power monitor (wall wart voltage, current, power supply temperature)
• DVI out via FPGA - EXDMA compatible or standalone
• Stereo audio output
• Real time clock
• Powered by wall wart (8-16 VDC) or USB (programming console)
• Programmable via serial mode 2 (programming console) or USB (device port)

Schematics (pdf)

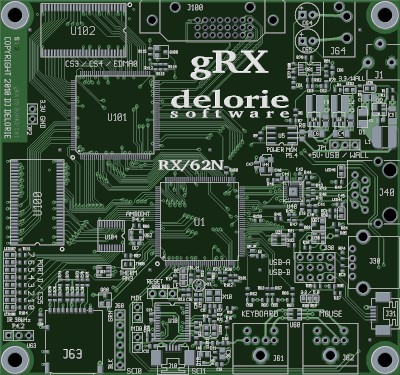

Layout (pdf)
