Stefan Salewski wrote:
> > I'd like to make a flexible printed circuit, but I'm not sure if PCB
> > will do everything I'd like, in particular teardrops and rounded
> > line corners.
>
> Teardrops should be available as default plugin, see
>
> http://www.delorie.com/pcb/teardrops/
>
> I am not sure if it works perfectly, someone reported about a
> problem long time ago, I do not know if DJ has fixed that.

The internet delivers! I will try it out and report back!


> Corners of line segments should be rounded by default I guess.

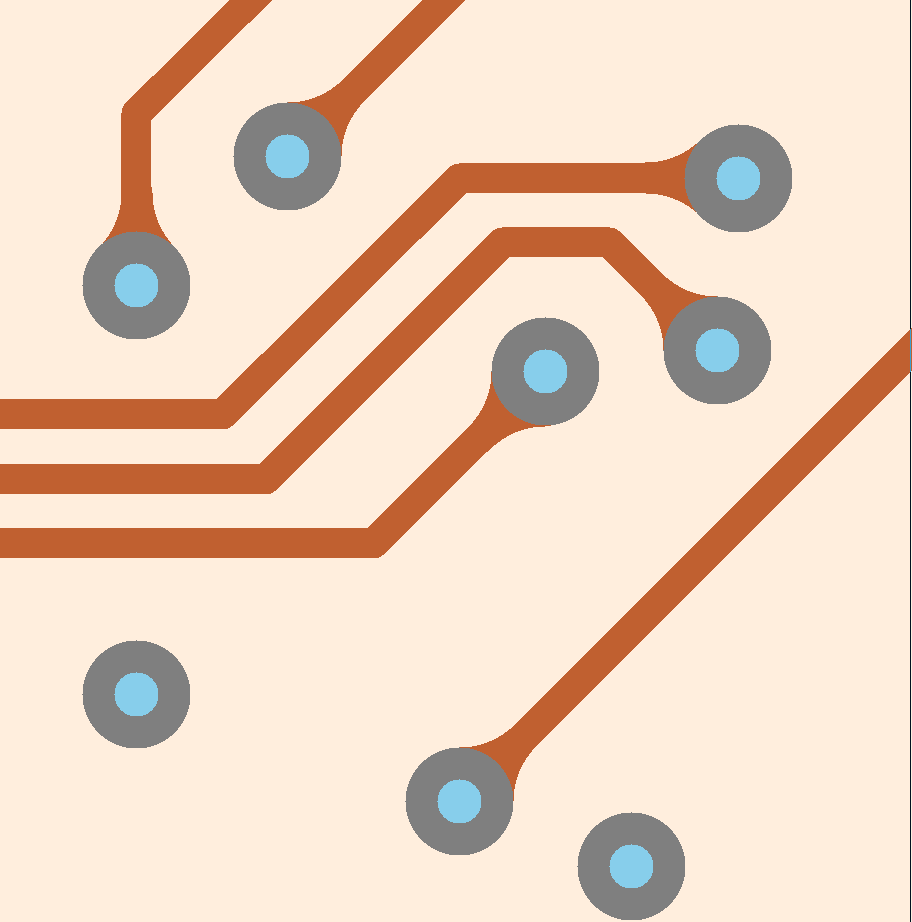

So far in using pcb I've never seen round corners. Looking at one
example screenshot on the teardrop plugin page:

http://www.delorie.com/pcb/teardrops/td-ex4.png

Shows no round corners. They are all 45 degree sharp corners. I would
like an arc rather than a corner.


//Peter
