This is a controller for a new CNC machine (photo gallery) I'm working on.
2012-03-12 - status - got the firmware "stepper simulator" working right. Holds to 1/10 degree! 4000 step/rot demo on youtube

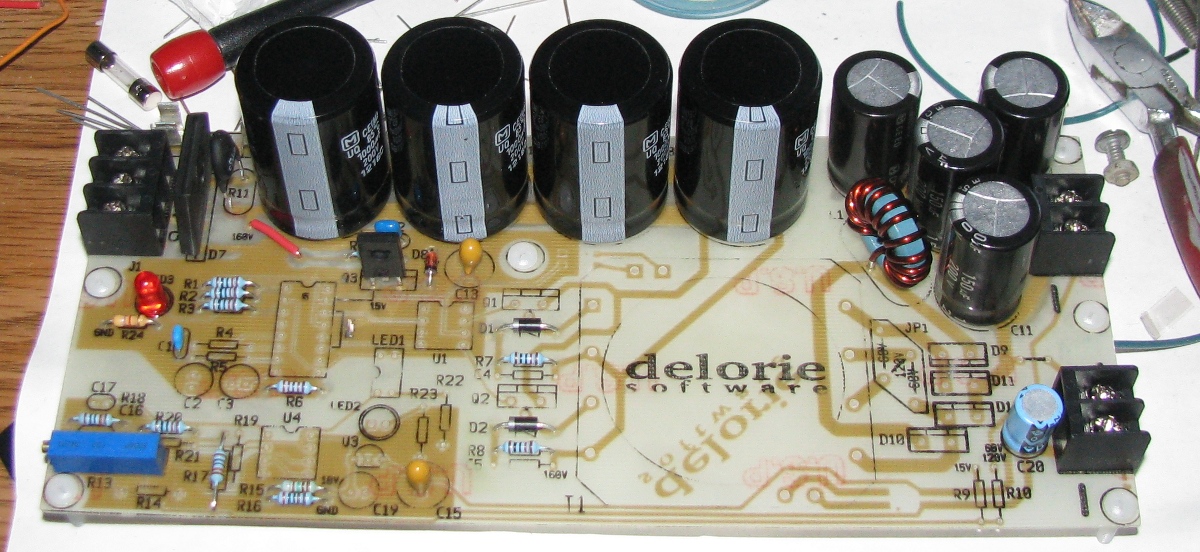

60/120 volt DC isolated power supply for the motors. Design size: 360
watts (60v @ 6A or 120V @ 3A). Should provide the 15 VDC control
power too, if it works the way I want.

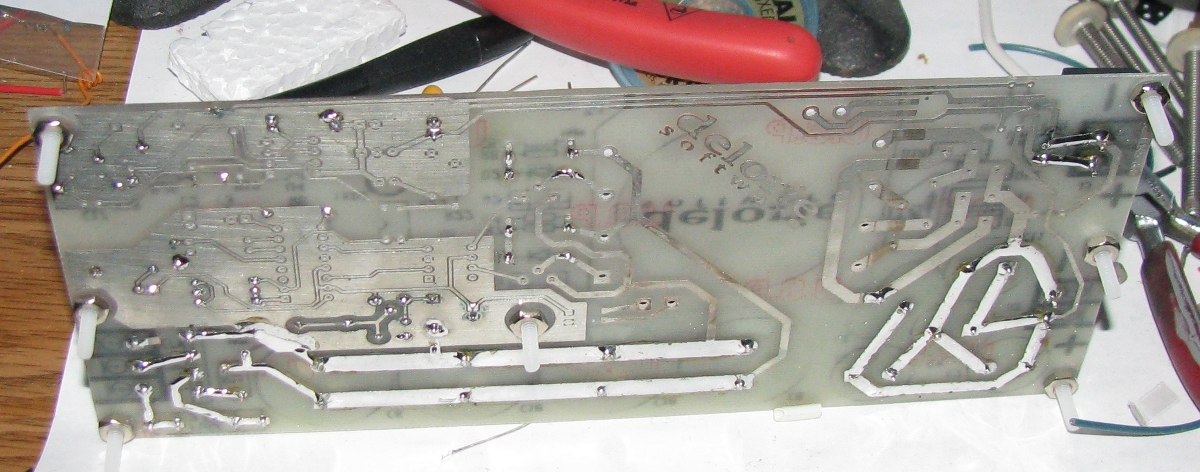

Hand-wound transformer, flyback design,
toner transfer on single sided PCB. Based on a March 2011 Q&A
article in Nuts and Volts magazine.
I rewound the two small secondaries to 9 and 10 turns, as they were not quite producing enough voltage. EMI is high enough to reset the controller board though. I got a big linear transformer that works with the primary side of the supply that I'm also testing.
Current status: the linear supply seems to be working OK for now, so no further power supply work is planned at the moment.

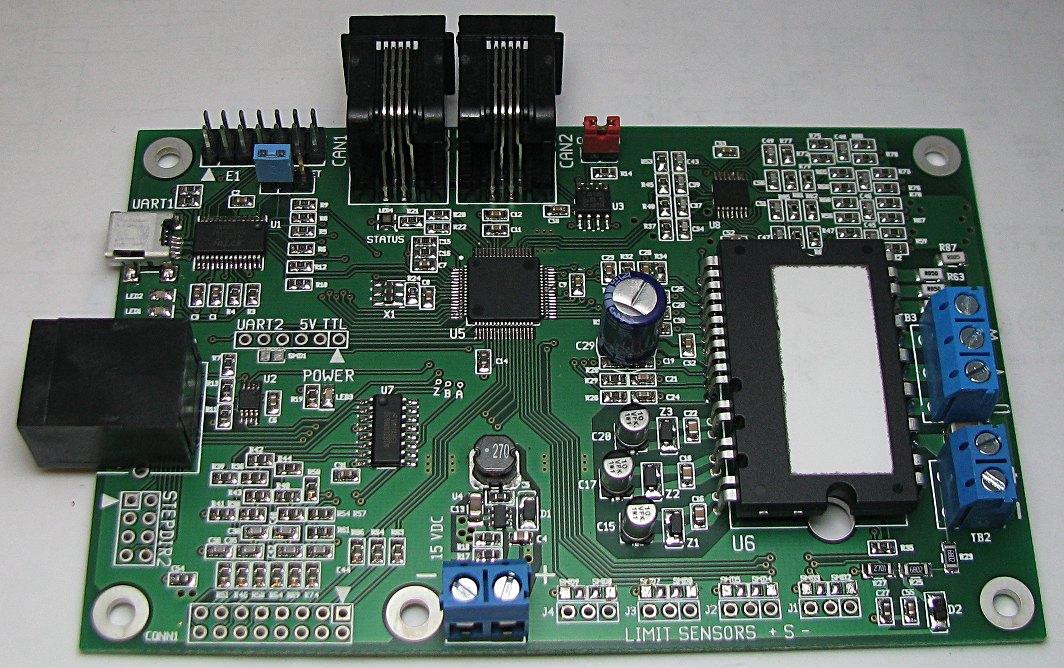

The main driver board uses an 80 MHz RX/62T microcontroller (center) and an FNB41560 three-phase driver chip (right). Interfaces include:
Full connector pinout documentation (mostly for my own reference)
The board also has an RGB status LED, current sensors for each motor phase, and motor voltage monitoring.
Note: no support whatsoever is offered for these design files; use at your own risk!

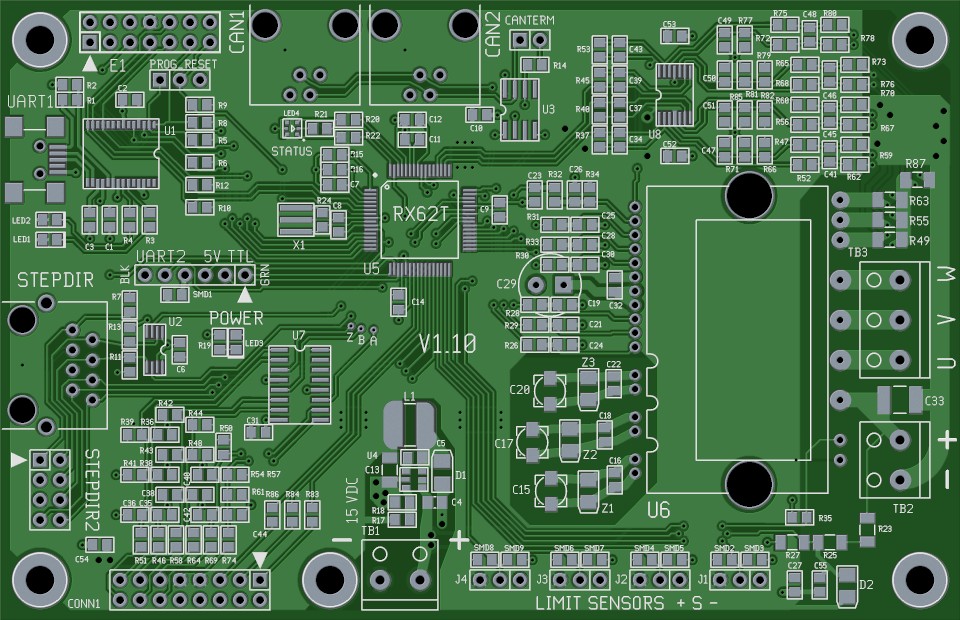

Shown 2X actual size
Click image for schematic (pdf)

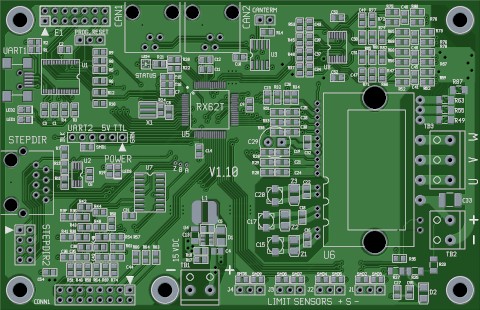

Shown actual size

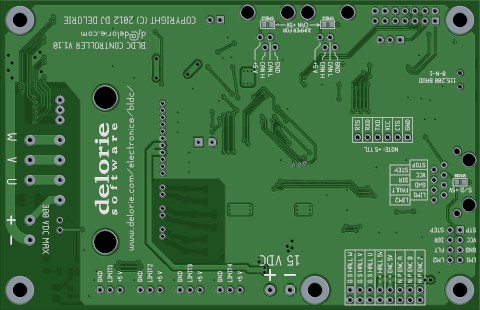

bldc top paste gerber
